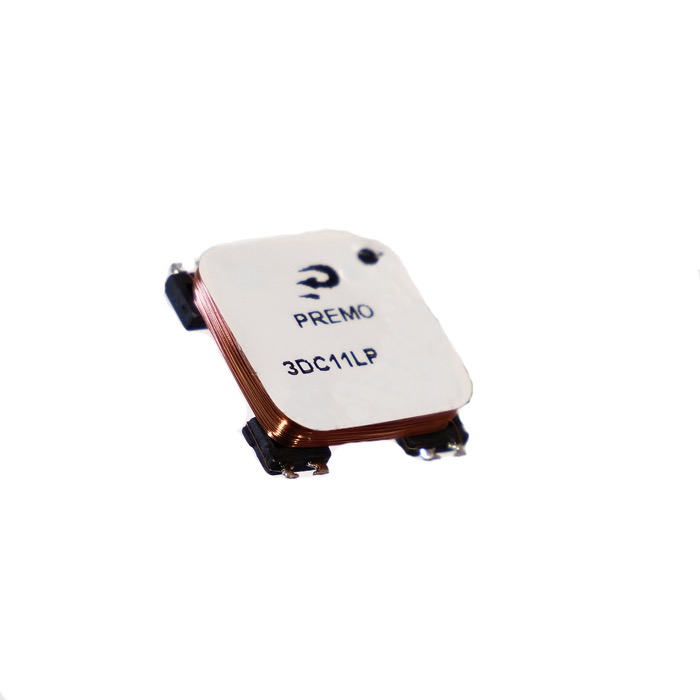

3DC11LP-0720J
3D receiving LF antenna

7.2mH / 125–134.2kHz. A 3D receiving LF antenna evaluation entry for PKE/PEPS, access control and industrial LF identification.

Sample requestGet documentsVolume inquiryLead time check
✓PREMO authorized distributor✓Original source✓Selection support
SpecsDocumentsApplicationsRelated

Specs

Ordering P/N
3DC11LP-0720J
Brand
PREMO
Series
3DC11LP
Category
LF RFID / 3D receiving antenna
Description
3D receiving LF antenna, 7.2mH, 125/134.2kHz, 11×11×11mm
MOQ
Confirm by project
Lifecycle
ACTIVE
Freq.(kHz)
125 / 134.2kHz

Documents

Type
Name
Action
Datasheet
3DC11LP-0720J datasheet (PDF)
PreviewGet
Application note
125kHz antenna placement & read range stability
PreviewGet
Replacement guide
Replacement evaluation: 5 key parameters
PreviewGet
Need more files (3D model / footprint / reference design)? Send us your scenario and constraints.

Applications & technical notes

Typical scenarios
Dexterous hands / motion captureIndustrial AGV / robotics positioningAutomotive PKE / PEPSSmart lock / access control
If you only have a scenario and constraints, start with selection support.
Get selection support
Technical articles
3D coil vs single-axis antenna in PKE/PEPS125kHz antenna placement & read range stabilityReplacement evaluation: 5 key parameters
